DC01/DC02/DC03/DC04/DC05/DC06 Cold Rolled Steel Coil

DC01, DC02, DC03, DC04, DC05, DC06 are steel grades of European standard DIN EN 10130, 10209 and DIN 1623, which are specified cold rolled steel. The grades are classified according to the maximum permissible yield strength.

Category：

Carbon Steel Coil

+86-19026837868

manager2@zgbgmetal.com

E-mail

RELATED PRODUCTS

Product Details

DC steel coils have high tensile strength and elongation, giving them good processing properties during the manufacturing process. This makes DC steel coil widely used in the manufacturing of automotive parts, home appliances, construction and other parts that require high strength and precision. DC steel coil has excellent weldability and machinability with its low carbon content. So it can be processed through various welding and cutting processes, such as arc welding, gas shielded welding, laser cutting, etc., to meet the needs of material processing performance in different fields. Lastly, it meets the requirements of environmental protection and sustainable development by releasing low carbon emission.

Product Name	Carbon Steel Coil
Thickness	0.15mm-25.4mm / Customizable
Width	600mm-2200mm
Coil Inner	508mm / 610mm
Surface	Black skin, Pickling, Oiling,etc
Material	S235JR, S275JR, S355JR, A36, SS400, Q235, Q355, ST37, ST52, SPCC, SPHC, SPHT, DC01, DC03, etc
Standard	GB, GOST, ASTM, AISI, JIS, BS, DIN, EN
Technology	Hot rolled, Cold rolled, Pickling
Application	Widely used in machinery manufacturing, construction, automobile manufacturing and other fields
Shipment time	Within 15 - 20 working days after receiving the deposit
Export packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package. Suit for all kinds of transport, or as required
Minimum Order Quantity	25Tons

Chemical Composition

C: max. 0,08 %

Mn: max. 0,40 %

P: max. 0,03 %

S: max. 0,03 %

Mechanical Properties

Steel Grade	Yield Strength (MPa) min	Tensile Strength (MPa) min	Elongation % min	Old Description
DC01	≤ 280	270-410	28	St 12-03
DC03	≤ 240	270-370	34	St 13-03
DC04	≤ 210	270-350	38	St 14-03
DC05	≤ 180	270-330	40	St 15-03
DC06	≤ 170	270-330	41	-
DC07	≤ 150	250-310	44	-

Scope of Application

DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling.

DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable.

DC04 is suitable for high deformation requirements.

DC05 is a thermal forming grade, it is suitable for higher forming requirements.

DC06 is a grade for special deep drawing, suitable for the higher deformation requirements.

DC07, this superior deep drawing quality is suitable for highest deformation requirements.

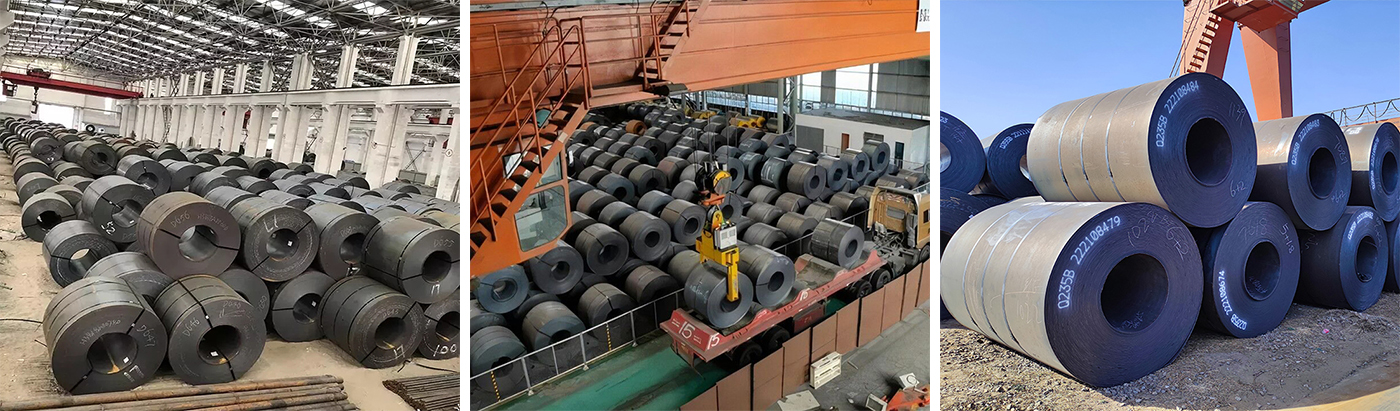

Warehouse storage

Bao Steel (Qingdao) Co., Ltd. is a large-scale enterprise group focusing on steel production and raw material import and export trade, integrating trade, industry, logistics and services, covering an area of 60000 square meters. After years of development, the business scope has expanded to the Middle East, Latin America, Australia, South Korea, Europe, Russia and even Africa. It has established a broad product sales and raw material procurement network at home and abroad, and sincerely provides customers with professional and thoughtful services.

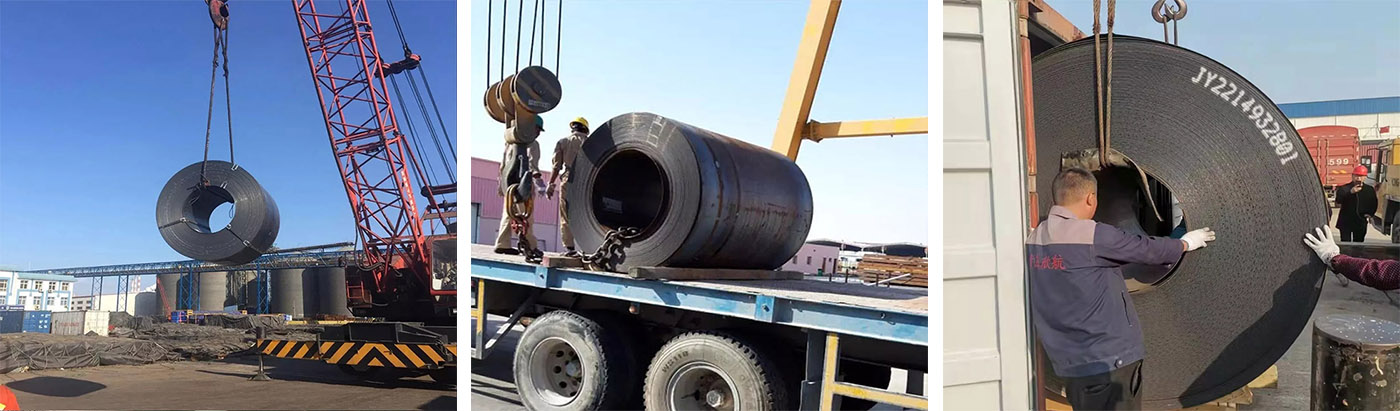

Packing and delivery
